SINGLE SIDE/ BLIND SIDE

Forming America exists to drive your concrete formwork projects towards success, which means getting you the exact tools you need for the job at hand.

Single side/Blindside applications can be tricky and require additional setup. That’s why we carry a complete line of forming equipment especially for Single Side/ Blindside applications. This allows you as a forming company to spend your time efficiently, set up the right forms, and focus on getting your project done. Below is a showcase of different blindsided wall system offerings from Forming America.

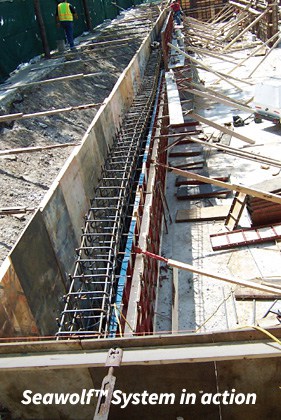

Seawolf Blind Side Wall Forming System

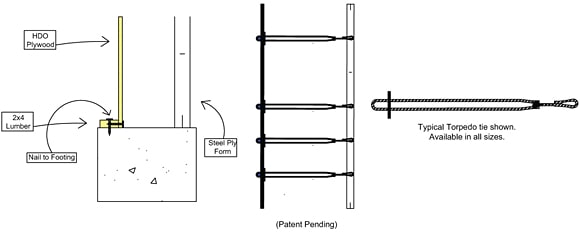

Forming America is the sole provider of the Seawolf Blindsided Wall Forming System. The Seawolf™ System utilizes Symons Steel-Ply™ modular concrete forms for the exposed concrete face and plywood on the inaccessible side.

This unique approach to one sided wall forming eliminates the need for “weld-on” ties, concrete/rock/wood anchors, or “A-frame” supports.  The benefit of using this system results in dramatic labor and equipment savings.

The finished product is a remarkably straight wall at a remarkably low cost.  Forming America can provide modular forms for rent or purchase, discounted used quality plywood, and the unique “torpedo ties” for a complete blindsided wall system.  (Rebar by contractor)

Contact our sales team for additional information.

Anchors

Rock anchors used in sound rock or concrete allows one-sided forming of walls or similar applications to be completed quickly and economically.  The rock anchor is threaded onto the coil rod until the rod hits the backstop of the anchor.  The plastic retaining sleeve is removed and the rock anchor/coil rod assembly is placed into the bore hole.  The assembly is installed so that the anchor backstop “bottoms” in the bore hole.  Tightening the coil rod will draw the anchor wedges forward to expand the anchor’s shell.

For anchoring into wood piling, Forming America can provide lag bolts and suitable anchoring hardware.  For steel applications, “weld-on” anchors are available.

A-Frame

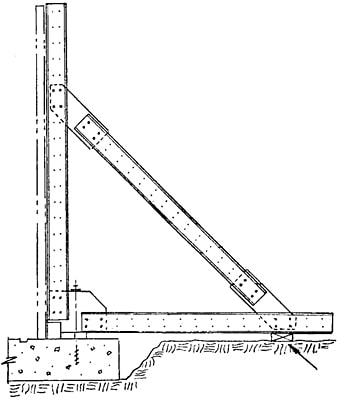

Steel Channel Waler

These one-sided wall forming components are designed to fit the 5″ or 8″ walers used with most forming systems.  However, some of the systems require the use of a sill (1½”) to position and connect walers to formwork as an assembly.  If the waler assembly and the forms are lifted separately, a waler connection (positive connection) is not necessary.

Symons Soldier

Standard form systems, such as Steel-Ply®, Alisply™, Rapid Clamp™, or Versiform can be combined with Symons Soldiers to create a tieless concrete forming scheme for one-sided wall forming, offering substantial savings in time and labor costs.  Hardware and accessories, including One Sided Brackets and Jack Brackets, simplify assembly and adjustments for one-sided wall forming applications.

A Complete Concrete Approach to Forming

We carry a comprehensive lineup for your Blindside/Oneside needs, but we strive to be more than just your supplier. We pride ourselves on developing lasting relationships with our clients, and that means being there to help you through your project challenges.

We don’t just supply you with the tools you need, but also provide blueprint takeoffs and consultation. This isn’t just a one-sided relationship— We take a hands-on approach, refurbing and repairing forming equipment so that you can focus on building for the future. We would love the opportunity to quote your forming needs for Singleside/Blindside application. With our timely delivery and pickup, we will help keep your projects on time and on budget.
